Heavy Galvanized Gabion Box Wire Mesh 2m Length Anti Rust Woven Hexagonal Mesh Style

Brand Name : KN

Model Number : KN-G05

Certification : ISO CE

Place of Origin : Hebei ,China

MOQ : 100 boxes

Price : USD 1.38-USD 2.66/sqm

Payment Terms : L/C,D/P,T/T,Western Union

Supply Ability : 50000 sqm each week

Delivery Time : 5-10 work days

Packaging Details : Plastic bags

Keyword : Gabion Box wire mesh

Roll Length : 1-50m

Lacing Wire : 2.2mm

Metal Type : Iron

Mesh Length : 2m

Weave : Gabion matresses,Retaining wall

Wire Dia : 1.8-4.0mm

Technics : Woven

Pvc Coating Color : Green, Blue, Grey, Etc.

Daily Output : 50000 Square meters

Frame Material : Metal

Contact Now

Anti Rust Woven High Quality Galvanized Welded Stone Filled Gabion Wire Mesh Customized Gabion Basket

Product Specifications

Attribute	Value
Keyword	Gabion Box wire mesh
Roll Length	1-50m
Lacing Wire	2.2mm
Metal Type	Iron
Mesh Length	2m
Weave	Gabion matresses, Retaining wall
Wire Diameter	1.8-4.0mm
Technics	Woven
PVC Coating Color	Green, Blue, Grey, Etc.
Daily Output	50000 Square meters
Frame Material	Metal

Product Description

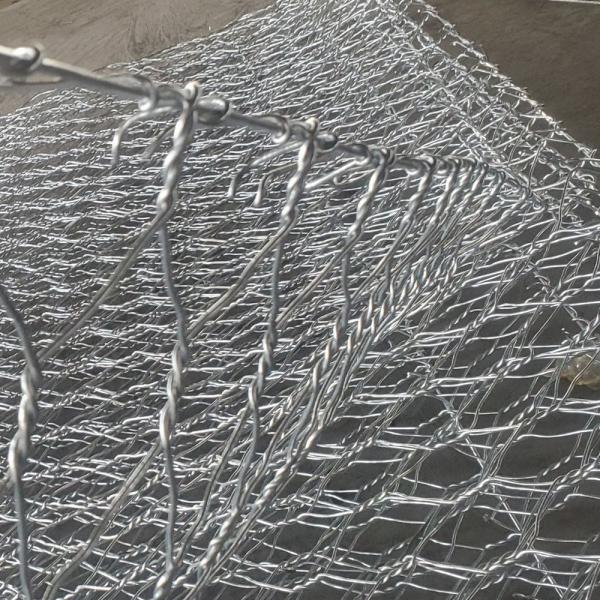

Gabion Wires Basket is made of heavy galvanized wire / ZnAl (Golfan) coated wire / PVC or PE coated wires, with hexagonal mesh style. These baskets are widely used in slope protection, foundation pit supporting, mountain rock holding, and river/dam scour protection.

Heavy Galvanized Gabion Box Wire Mesh 2m Length Anti Rust Woven Hexagonal Mesh Style

Technical Specifications

Mesh Size (mm)	Number of Diaphragm	Length (m)	Width (m)	Height (m)	Volume (m³)	Tolerance	Color	Wire Diameter (mm)
60×80	1	2.0	1.0	0.3	0.6	Length±5% Width±5% Height±5%	Blue Red Green Black	2.0-4.0
80×100	1	2.0	1.0	0.5	1.0
80×120	1	2.0	1.0	1.0	2.0
100×120	2	3.0	1.0	0.3	0.9
120×150	2	3.0	1.0	0.5	1.5
	2	3.0	1.0	1.0	3.0
	3	4.0	1.0	0.3	1.2
	3	4.0	1.0	0.5	2.0
	3	4.0	1.0	1.0	4.0
	1	2.0	0.5	0.5	0.5
	2	3.0	0.5	0.5	0.75

Custom specifications available. Please contact us for special requirements.

Applications of Hexagonal Gabion

Control and guide rivers and floods
Flood discharge and diversion dams
Rock fall protection
Preventing soil erosion
Bridge protection
Soil fixation structure
Coastal Defense Engineering
Port Engineering
Retaining wall construction
Road protection
